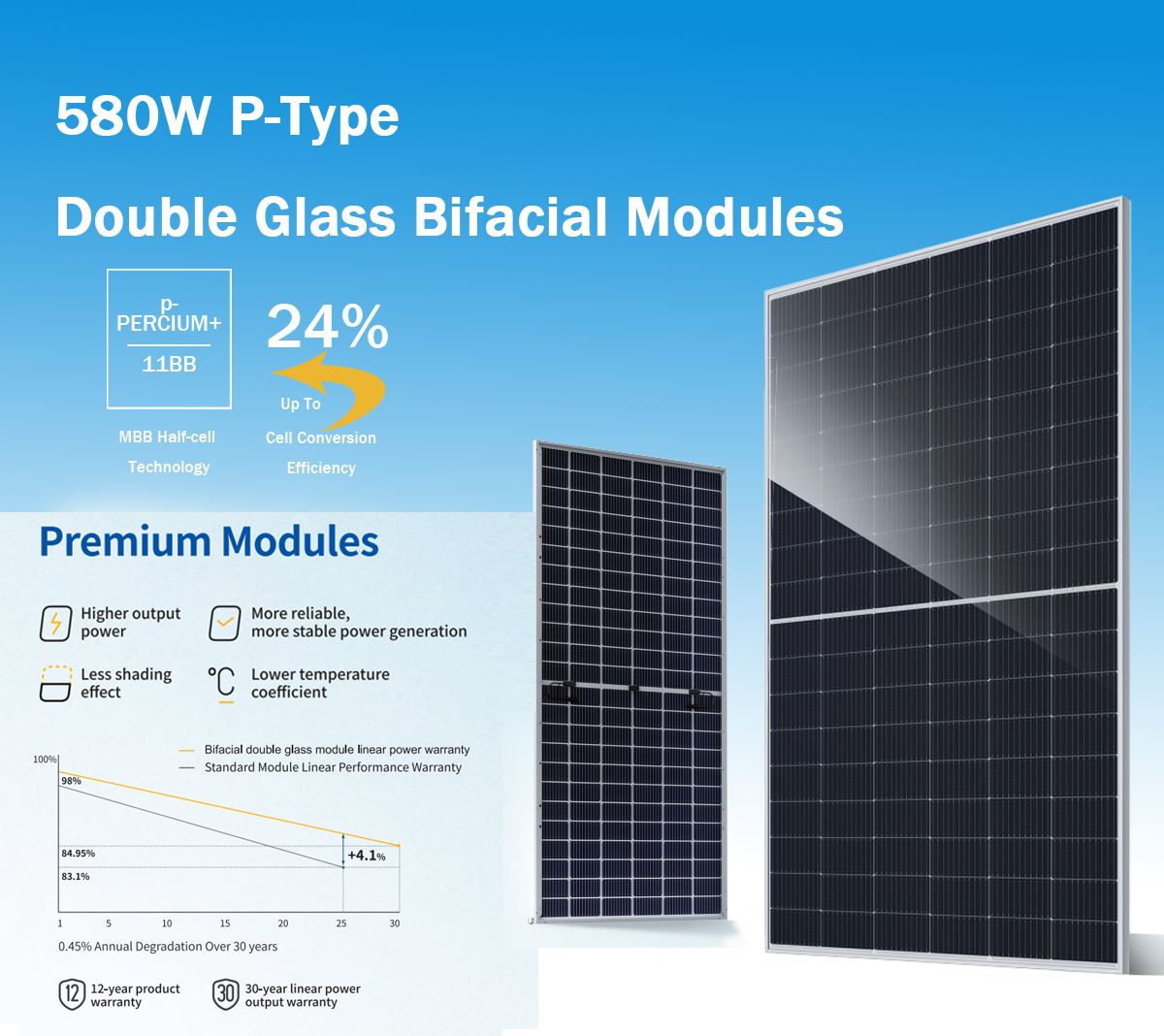

580W p-type Double Glass Bifacial Modules for off grid home solar panels

Higher outputpower
Less shadingeffect
More reliable,more stable power generation
Lower temperature coeficient

Cell conversion
efficiency uP tO 24%

Off Tie Solar System

Brands: Goldrain Inverter, Goldrain Solar

The peak sunshine time is 4 hours, and a 580W monofacial panel generates 1.85kWh of electricity.

Product Detail

Cell	Mono
Weight	32.5kg

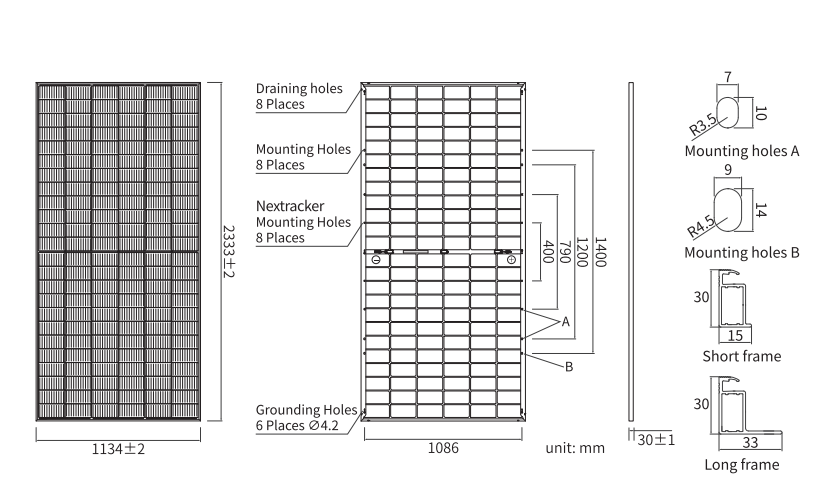

Dimensions	2333±2mmx1134士2mmx30士lmm
Cable Cross Section Size	4mm²(IEC), 12 AWG(UL)
No. of cells	144(6×24)
Junction Box	IP68, 3diodes
Connector	OC 4.10-351/MC4-EVO2A
Cable Length (including Connector)	Portrait:300mm(+)/400mm(-) Landscape:1400mm(+)/1400mm(-)
Front Glass/Back Glass	2.0mm/2.0mm
Packaging Configuration	36pcs/Pallet,720pcs/40HQ Container

Remark: customized frame color and cable length available upon request.
