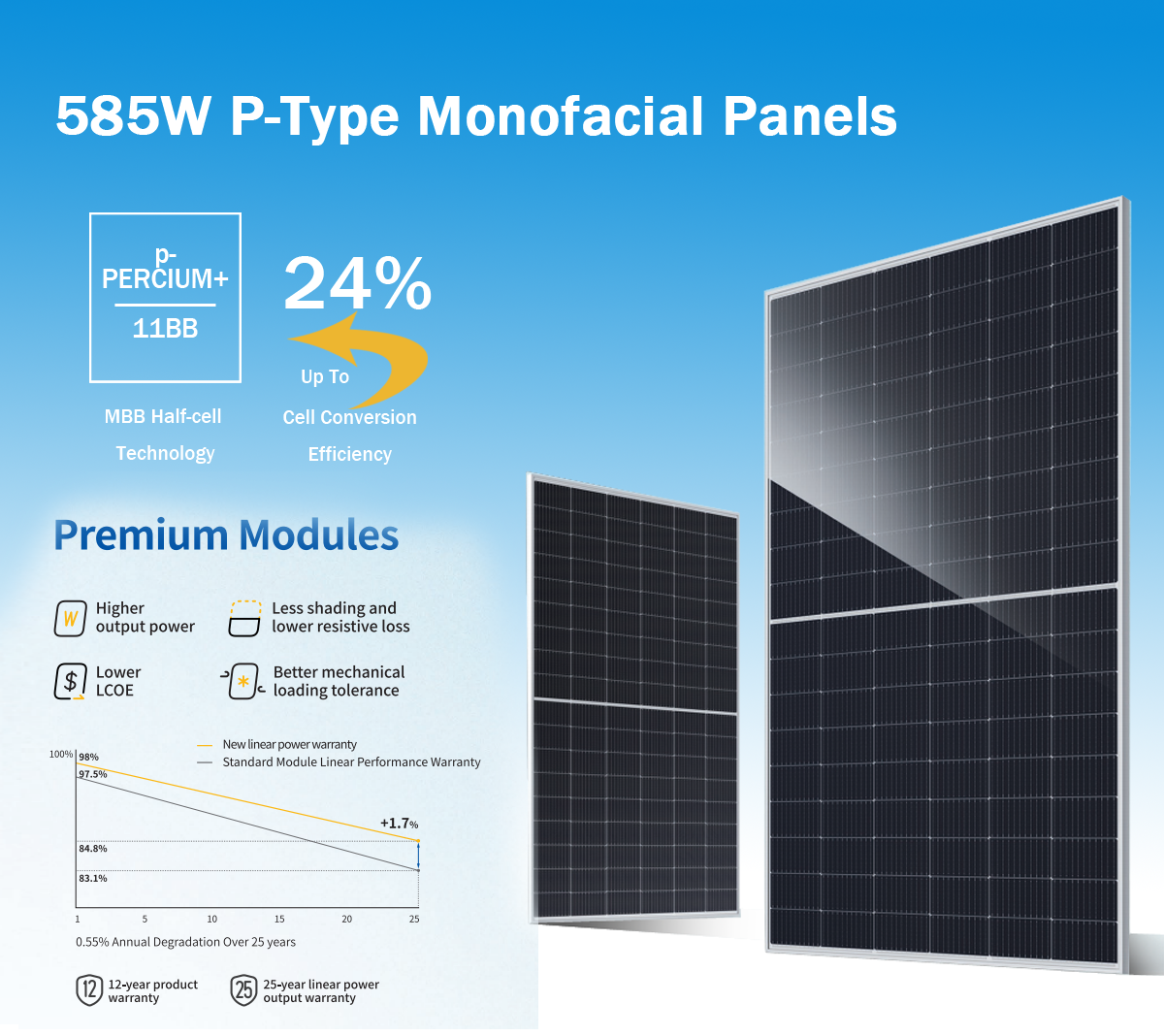

585W p-type Monofacial Modules half cell solar panel Single-side for Solar Roof Panels
MECHANICAL PARAMETERS
| Cell |
Mono |
| Weight |
28kg |
| Dimensions |
2333±2mmx1134士2mmx30士lmm |
| Cable Cross Section Size |
4mm²(IEC), 12 AWG(UL) |
| No. of cells |
144(6×24) |
| Junction Box |
IP68, 3diodes |
| Connector |
OC 4.10-351/MC4-EVO2A |
| Cable Length
(including Connector) |
Portrait:300mm(+)/400mm(-) Landscape:1400mm(+)/1400mm(-) |
| Front Glass |
3.2mm |
| Packaging Configuration |
36pcs/Pallet,720pcs/40HQ Container |
Remark: customized frame color and cable length available upon request.
