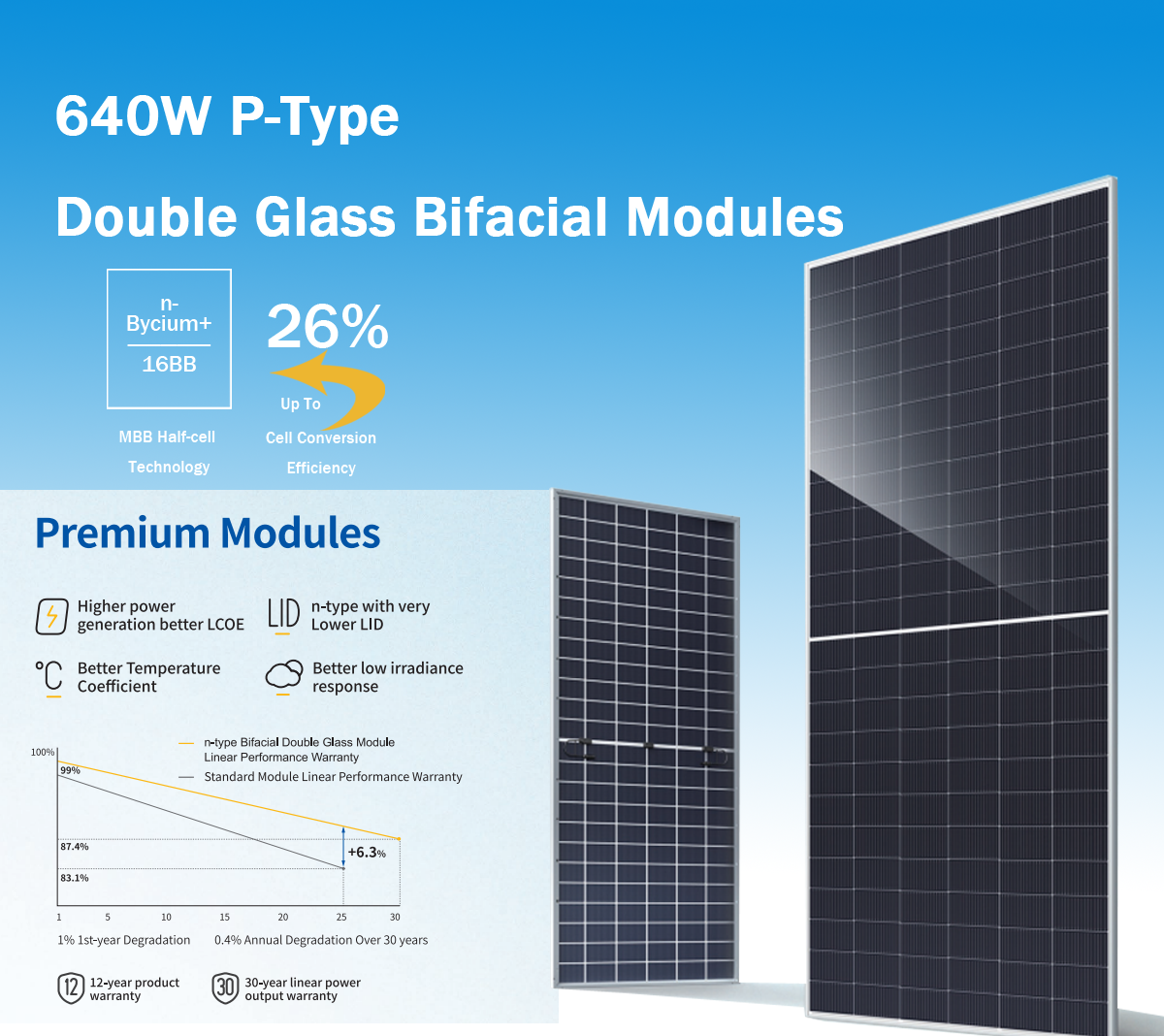

640w n-type Double Glass Bifacial Modules solar panels plate
MECHANICAL PARAMETERS
| Cell |
Mono |
| Weight |
34.6kg |

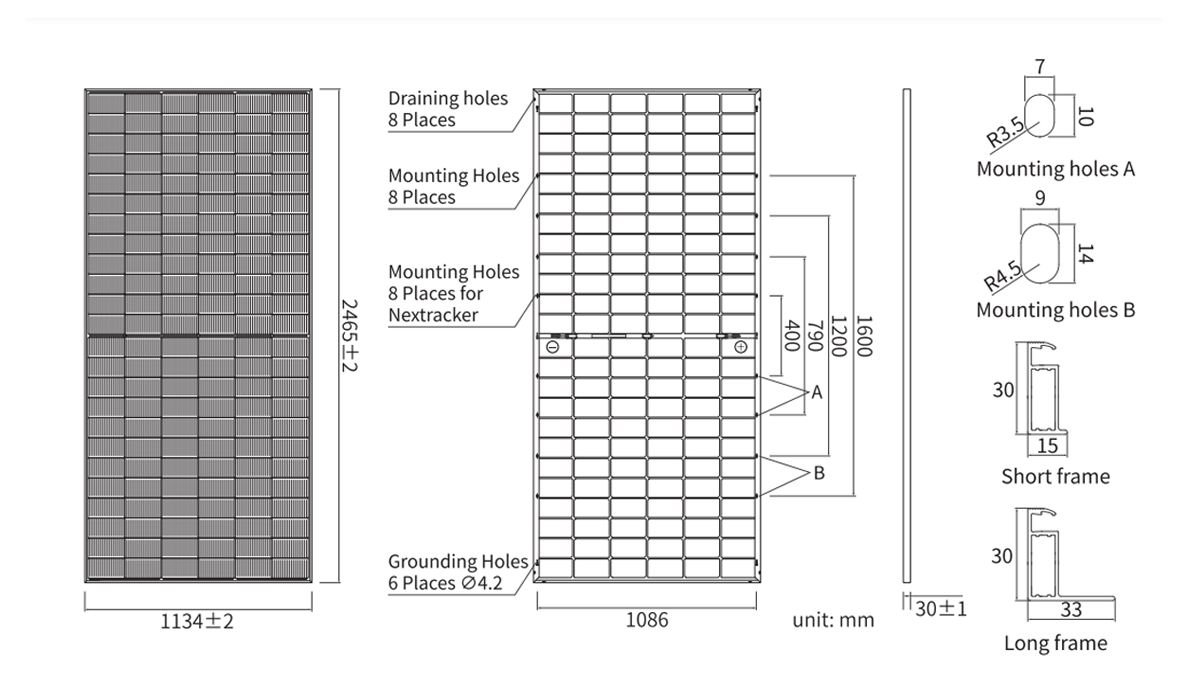

| Dimensions |
2465士2mmx1134士2mmx30士1mm |
| Cable Cross Section Size |
4mm²(IEC), 12 AWG(UL) |
| No. of cells |
144(6×24) |
| Junction Box |
IP68, 3diodes |
| Connector |
OC 4.10-351/MC4-EVO2A |
| Cable Length
(including Connector) |
Portrait:300mm(+)/400mm(-) Landscape:1500mm(+)/1500mm(-) |
| Front Glass/Back Glass |
2.0mm/2.0mm |
| Packaging Configuration |
36pcs/Pallet,576pcs/40HQ Container |
Remark: customized frame color and cable length available upon request.
