6FYDT-50 Maize Milling Machine

Short Description:


Product Detail

Product Tags

6FYDT-50 Maize Milling Machine

Technical Parameters
Model Number: ?6FYDT-50 Productivity: ?50T/ 24H
Flour extraction rate: ?75%~85% Power(W): ?152 kw
Weight: ?35T Dimension(L*W*H): ?27000*9000*7500 mm
Certification: ?ISO/SGS Noise: ?<85db
Description

50 ton / day Maize Milling Machine

For the 50 ton /24 hours Maize Milling Machine, cleaning and conditioning part are the basic cleaning for the grain in Maize Milling Machine, while in the milling and sifting part, we have different designs in Maize Milling Machine, such as we can adopt the single roller mill and double roller mill two ways.The different influence will be on the final flour, flour quality and flour extraction rate both influenced.

1. Raw grain : white / yellow corn

2. Products variety: 1) Maize fine flour(60mesh) ; 2) Maize germ ; 3)Maize bran; 4) Fodder flour

corn flour

50 ton /24hrs Maize Milling Machine Photos:

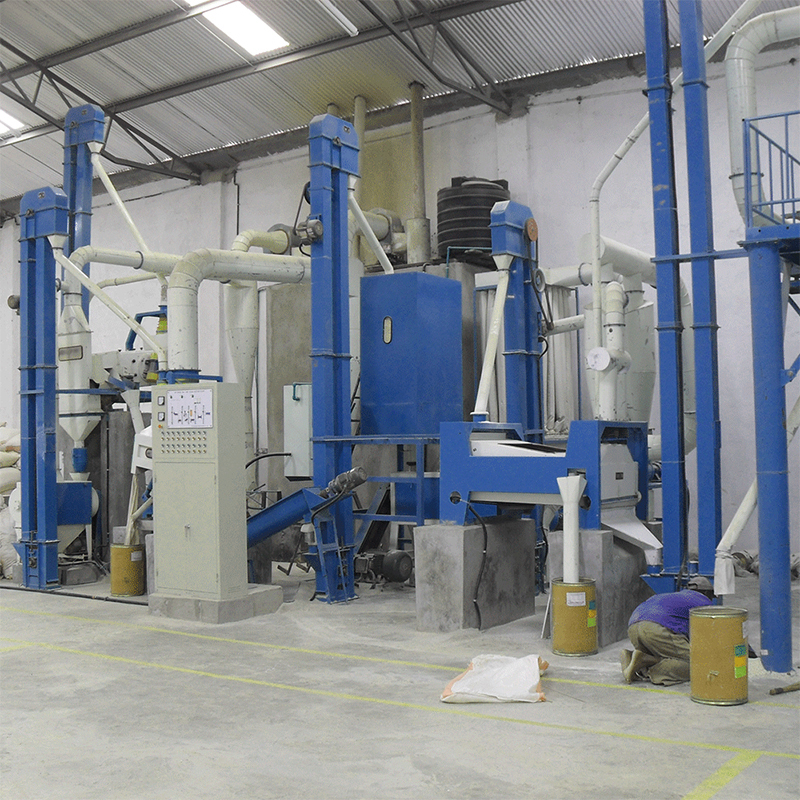

1. Cleaning conditioning section:

Mainly to remove impurities from the raw grain.

maize-mill

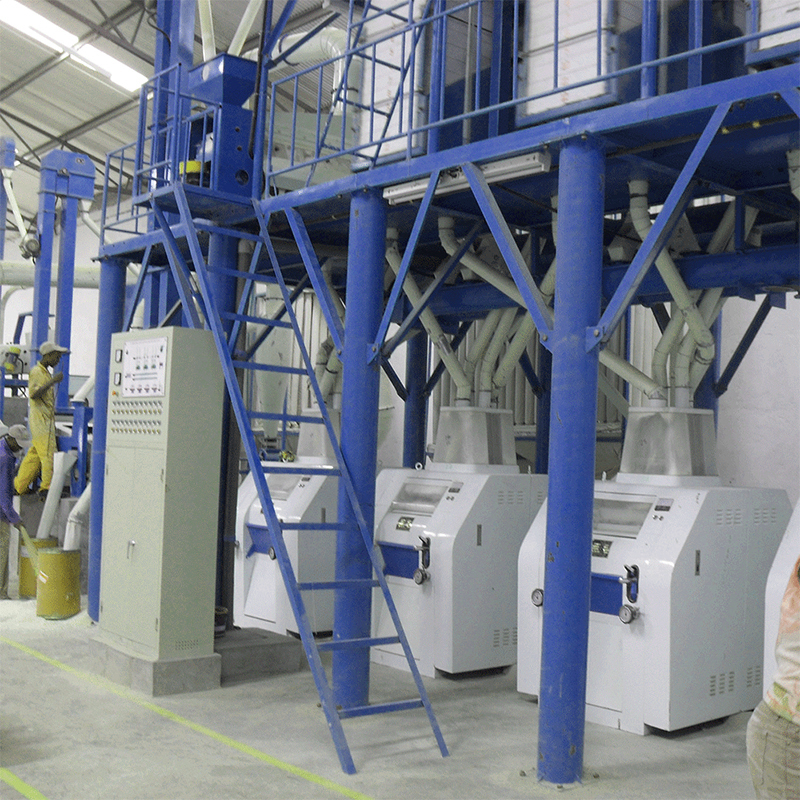

2. Milling Sifting section:

Grinding the corn into flour, grits, meal different micron according to customers’ requirement.

Also we adopt the sifter to classification and grading the flour.

maize-mill

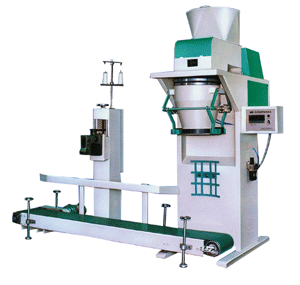

3. Weight packing machine :

We adopt 10-25 kg /bag and 25-50 kg/bag for final product packages

"
