GR-S200 Assembly Hopper Bottom Silo

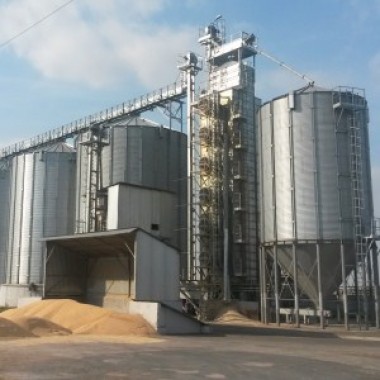

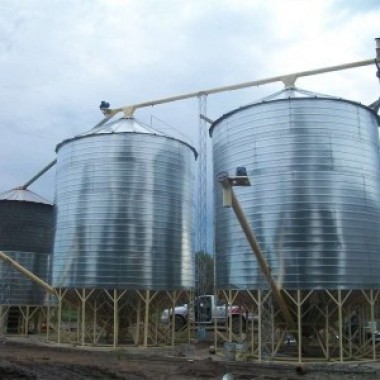

Galvanized steel conical bottom silo

The special design for conical bottom silo is full automatic unloading the grain from the silo, no need sweep auger,conical bottom can be made by concrete or steel,conical bottom silo columns designed [X” bracing,pressure bearing is higher than the national standard, and safe enough. Conical bottom silo body plate made by hot dip galvanized steel plate, zinc coating 275-600g/m2.

Assembly Hopper Bottom Silo Technical Parameters :

Silo bottom: Hopper bottom silo
Silo capacity: 200 tonnes steel silo
Diameter: 6.7 meter
Silo Volume: 263 CBM
Assembly Hopper Bottom Silo Auxiliary System :
1. Ventilation System
2. Temperature Sensor System
3. Fumigation System
4. Thermal Insulation System
Discharge: scraper conveyor

Assembly Hopper Bottom Silo wall plate processing step :

1. Raw steel plate feeding

2. Silo Wall Corrugated Molding Line

3. Computer punch on the silo plate surface

4. Finalize the design silo wall

5. Arc forming machine

6. Finished silo plate
