GR-S2000

Assembly Corrugated Grain Silo

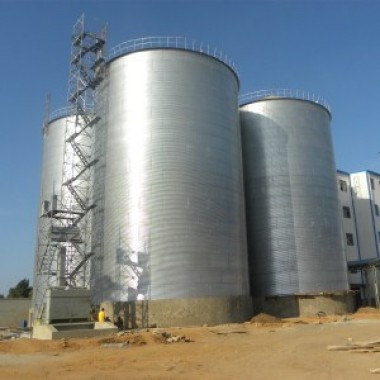

This grain silo with flat bottom , capacity 2000 tonnes silo, grain silo diameter is 14.6 m,silo volume is 2790 CBM, grain silo with Auxiliary Systems: Ventilation System, Temperature Sensor System, Fumigation System,Thermal Insulation System, grain discharge use Sweep auger and screw conveyor.

The structure consists of two parts: The body and the roof.

1. The Silo Body

Include the wall plate, column, manhole, roof ladders and so on.

(1) The wall plate

Our steel is hot galvanized, which makes it durable and weather resistant. Our advanced bolts with spherical washer and the resisting-worn rubber are used to ensure the tightness and using period.

(2) Column

The column, made by the Z-bar, is used to reinforce the silo body. It is connected by junction panels.

(3) Manhole and Roof Ladders

There are inspection door and ladders inside and outside the silo body. It is convenient and accessible for any maintenance work.

2. Roof

Roof is made up of radiated beam, roof cover board, tension ring, ventilator scoop, roof cap, etc.

The space age construction technology, which is adopted in the design of the silo framework, can ensure the stability of silo under the large span. There is a guardrail around the silo eaves and there is also a manhole on top of the roof.
